Adding a Station

1. Highlight the area in the Worldwide Menu where the new area should be added 1

In this example, a station will be added to Washington.


2. Click the ‘+’ button at the bottom of the Worldwide Menu 2

This will bring up the ‘Add Area’ screen:


3. Select “Station” on the ‘Area Type’ menu. 3

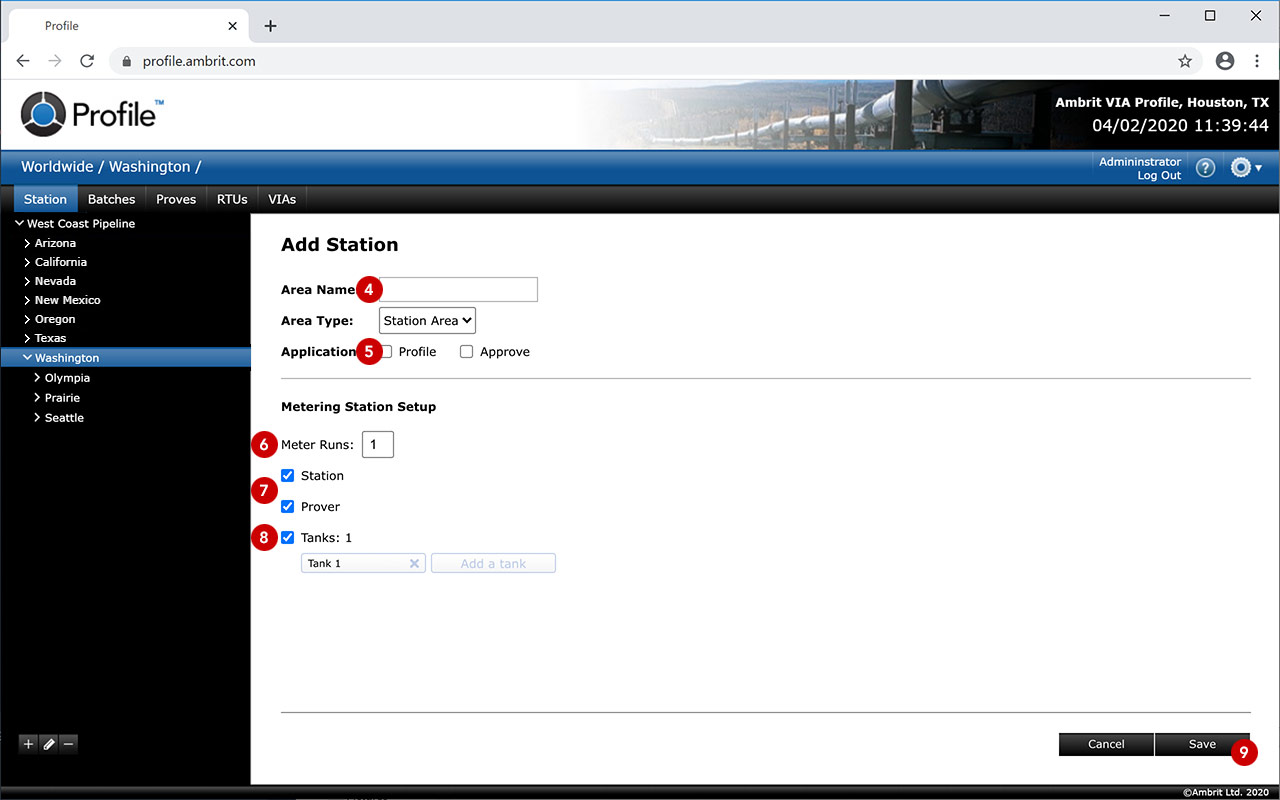

This will display the station configuration options:

4. Enter the station name 4

5. Select the Applications that apply for the station 5

N.B. Applications will only be visible if they have been purchased and activated in the key.

6. Select the number of Meter Runs 6

If the station is handled by a single stream RTU then this will generally be one.

If the RTU is a multi-stream flow computer then extra options will be available for station and prover. If the flow computer has a station and prover built into it then tick these checkboxes 7.

If the station has tanks, ticks the ‘Tanks’ checkbox and add a tag for each tank on the station 8.

7. Click the ‘Save’ button 9

The new station will be added.

See the ‘Adding an RTU‘ section for more details on how to add an RTU to a station.
