Prover Settings

N.B. This feature is only available on the SCADA server or in standalone Profile.

1. Click the cog icon in the Location Bar and select ‘Settings’ on the menu

See the ‘Accessing Server Settings’ section for more detail.

2. Click ‘Prover’ in the left hand column 1

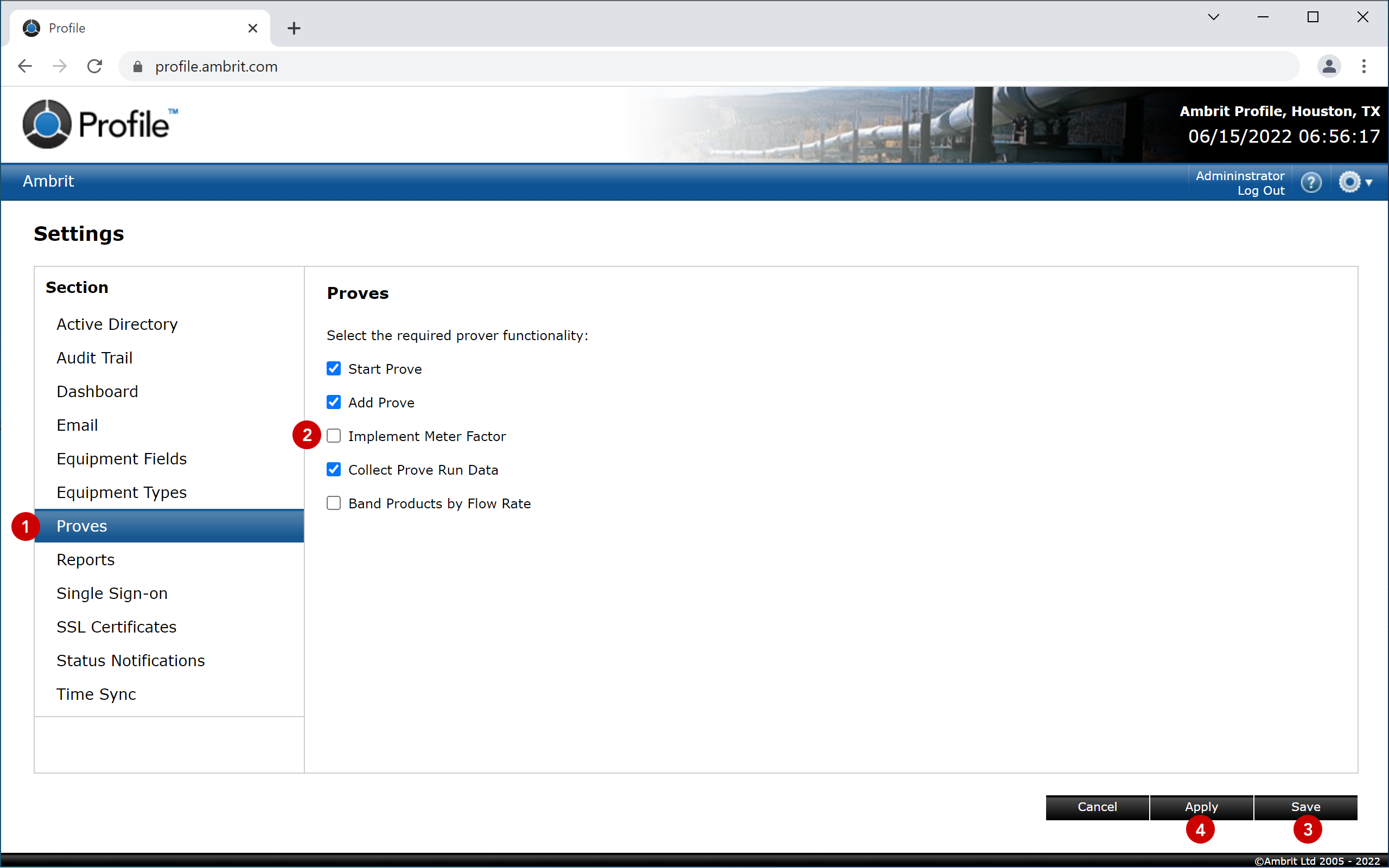

The Prover settings screen is displayed:

3. Select the prover functionality that is required on the system 2

N.B. Some options will only be visible if they have been purchased and activated in the key.

Start Prove Allows a user to start a prove in the flow computer directly from Profile.
Add Prove Allows proves to be added to Profile manually.
Implement Meter Factor Allows the meter factor to be written back to the flow computer.
Collect Prove Run Data Allows the data from prove runs to be collected in addition to the primary prove data. Prove run data is only available when using a direct connection or a VIA.
Band Products by Flow Rate Splits the product into high, medium and low based on the flow rate.

4. Click the ‘Save’ button to save the changes and exit the Settings section 3

N.B. Click the ‘Apply’ button to save the changes and remain in the Settings section. 4
