Viewing the Prove Details for a Meter

1. Click the ‘Approve’ tab in the Database Bar 1

2. Select the station in the Inventory Menu 2

This will show the latest proves from each meter run:

3. Click on the meter run in the Latest Proves list 3

This will show a history of all proves for the selected meter / product / base curve:

4. Click on the prove in the Prove History list 4

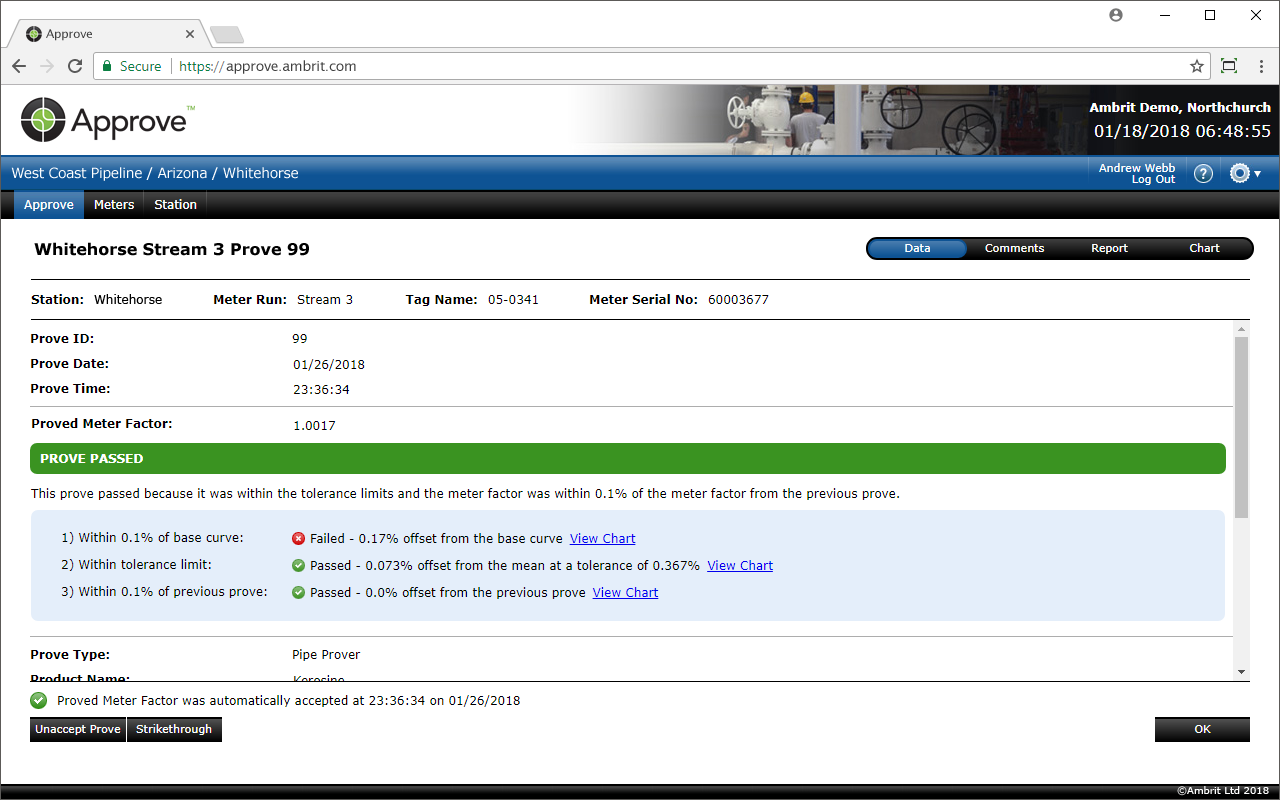

The prove details screen will be displayed, showing the primary information from the prove and the prove test results:

Click on the ‘Comments’ tab to view the comments. Comments are currently only enterable on Approve Mobile.

Click on the ‘Report’ tab to view the flow computer generated prove report.

Click on the ‘Chart’ tab to view the the following charts:

• Flow Rate Linearisation Chart
• Proved Historical Meter Factor Chart
• Deviation From Previous Prove Chart
• Historical Temperature and Pressure Chart
• Meter Factor and Temperature Chart
• Repeatability and Reproducibility Chart
• Meter Factor Regression Chart
• Drift Chart
• Days Between Proves Chart
• Days Between Proves with Meter Factor Chart
• Process Variable Line Chart
• Process Variable Scatter Chart
