RTU Setup – Data Map

Profile will automatically pre-fill the data map for Omni 6000, Omni 7000, Dynamic Micro MP3, Dynamic Micro MVL, Emerson ROC 800L and Krohne Altosonic RTUs.

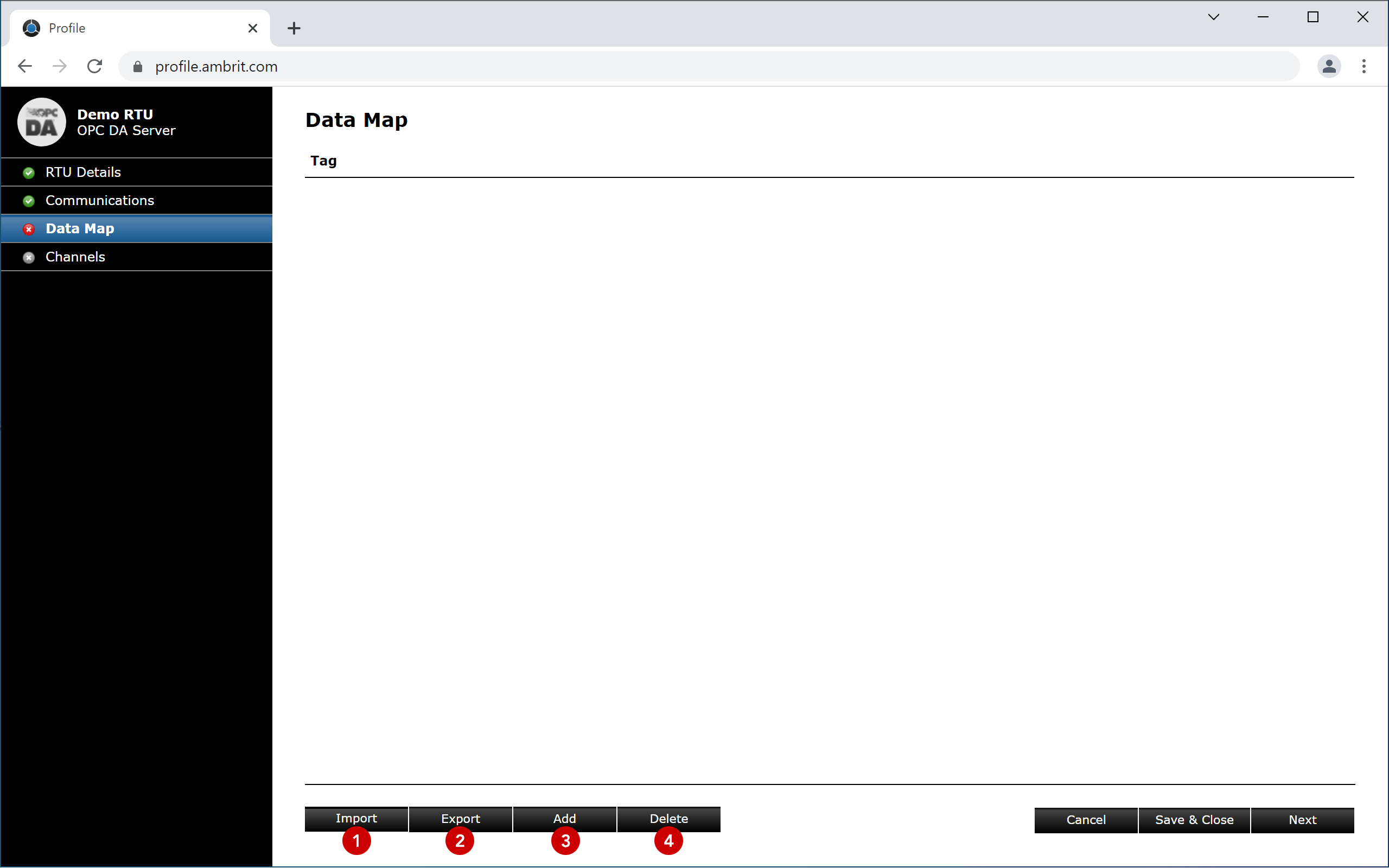

For ABB Spirit Flow-X and PLC RTUs, click the ‘Import’ button 1 to import an existing map in csv format.

Contact Ambrit for the file format.

For OPC DA and OPC UA RTUs, click the ‘Import’ button 1 to import an existing map in csv format or click the ‘Add’ button 3 to add fields individually.

To delete a field, select it in the list and click the ‘Delete’ button 4.

Click the ‘Export’ button 2 to export the data map in csv format.

Click the ‘Next’ button to move to the next section:  Channels
